MSNAP

MSNAP Heavy-Duty, Zero Lift, Snap-Fit Panel Hanging Solution

  • Type: Snap-Fit Panel Hanging Solution

  • Projection: 9.525 mm

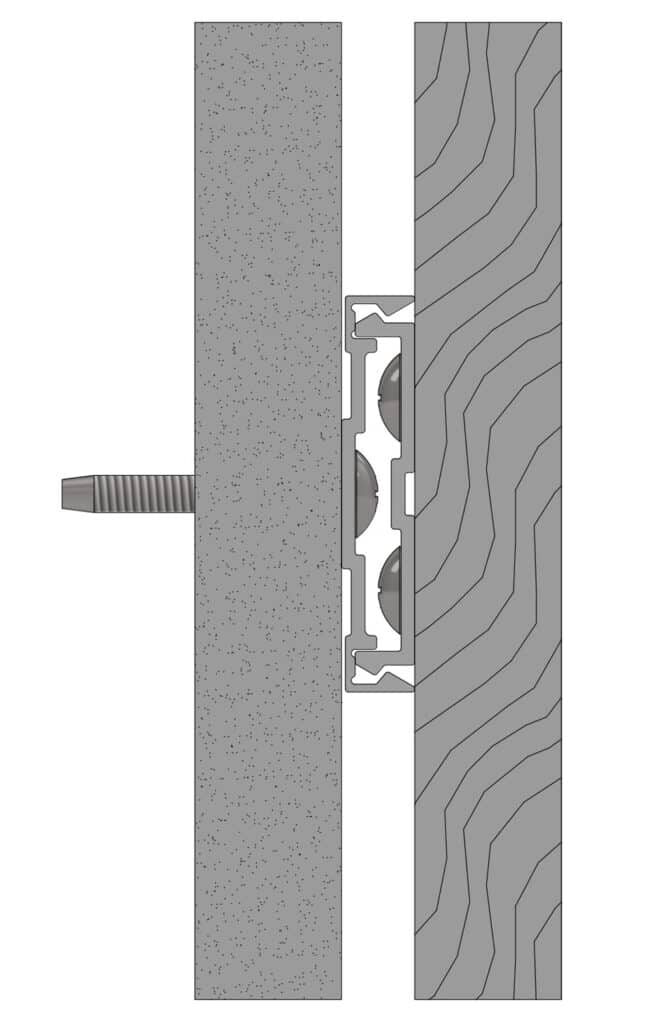

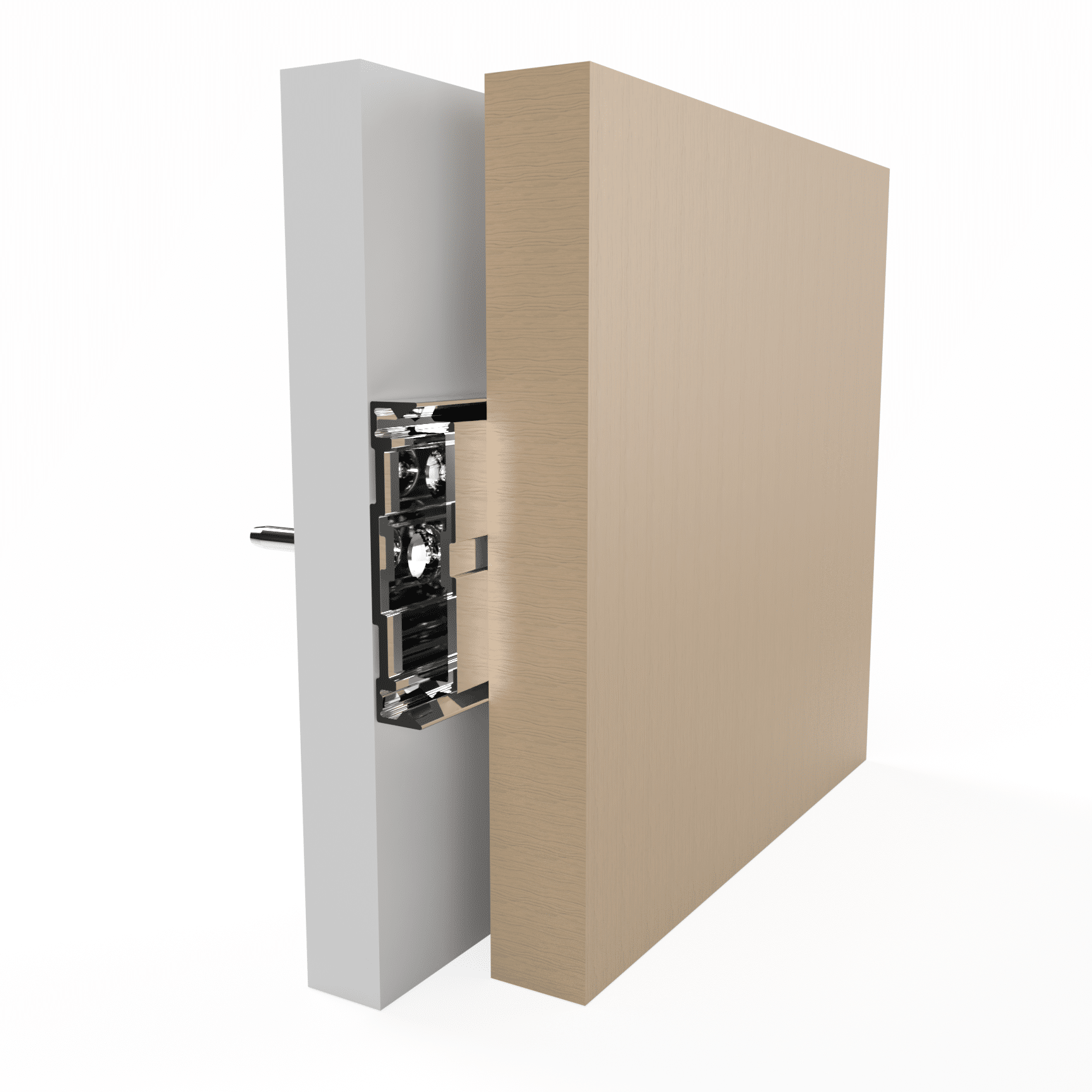

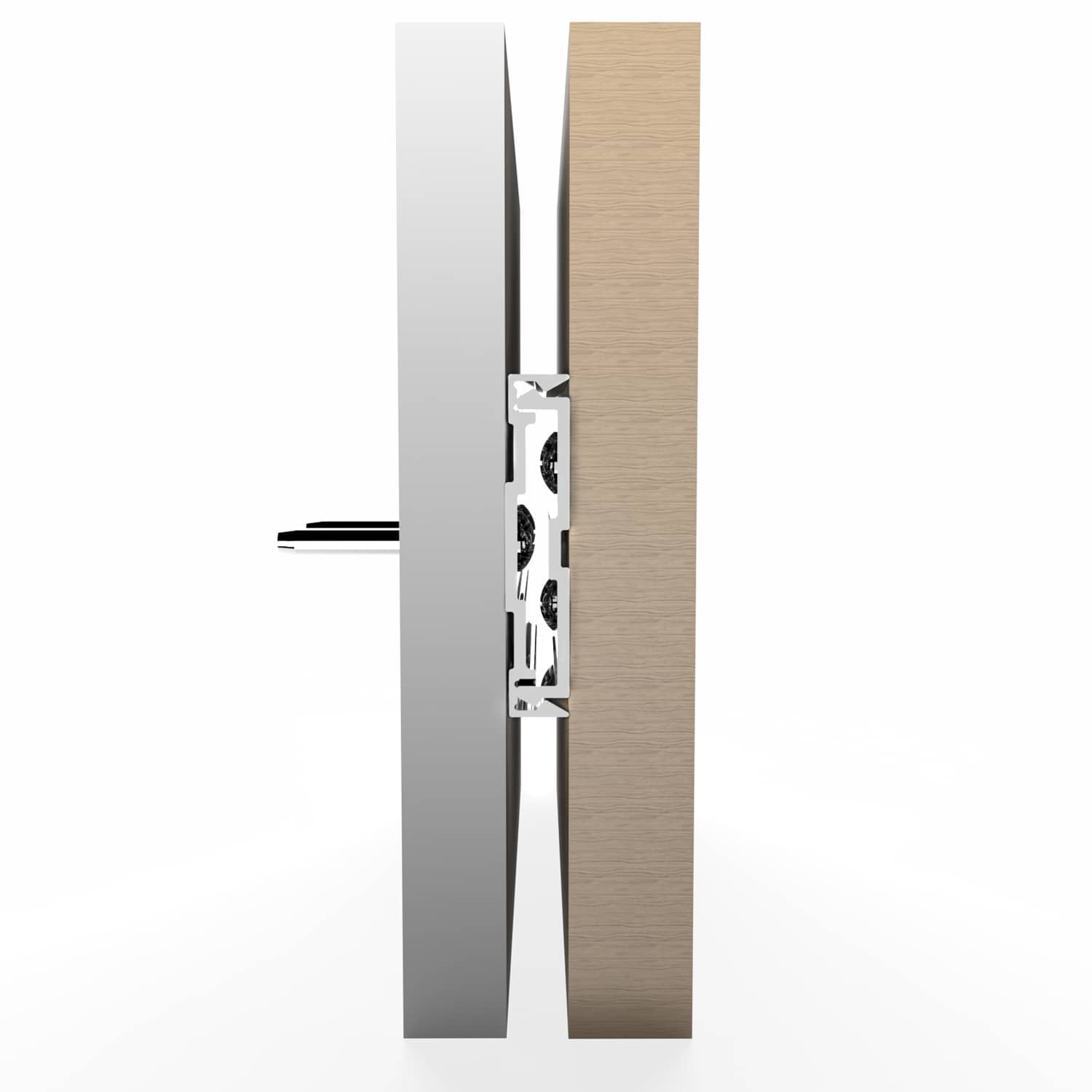

Our new heavy-duty, zero-lift snap-fit rail system is designed for the installation of a wide variety of interior panels. The system uses interlocking wall rails and panel rails that snap together to create a secure, reliable mounting solution. This design allows panels to be installed with a 9,525 mm projection from the surface or mounted tight to ceilings with no lift-off clearance required. The snap-fit configuration provides a clean, precise installation while maintaining strong support for architectural panel systems.

€30,05

Request a Sample

Product Description

About MSNAP Z CLip

Our new heavy-duty, zero-lift snap-fit rail system is designed for installing a wide variety of interior panels. The system uses wall rails and panel rails that snap together, allowing for a 9,525 mm projection or installation tight to ceilings with no lift-off clearance required. As an extruded aluminium system, it is highly durable and offers a greater weight capacity than comparable plastic systems.

Features of MSNAP Z CLip

  • Zero-lift design allows for 9,525 mm projection on walls and ceilings
  • Constructed from 6063-T6 aluminium
  • Snap-fit rail system for fast, secure panel installation
  • Includes both panel rails and wall rails

Z Clip Installation Options

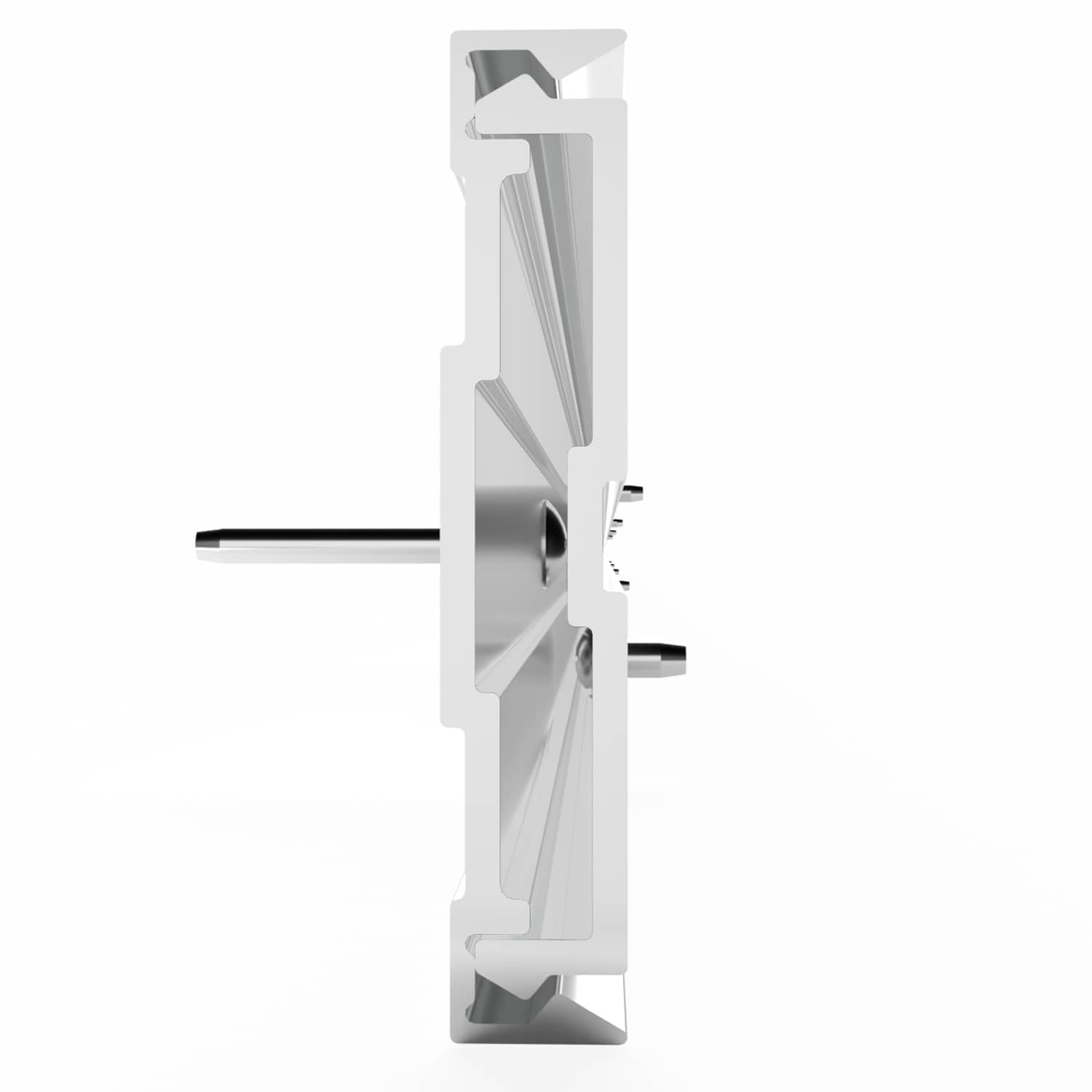

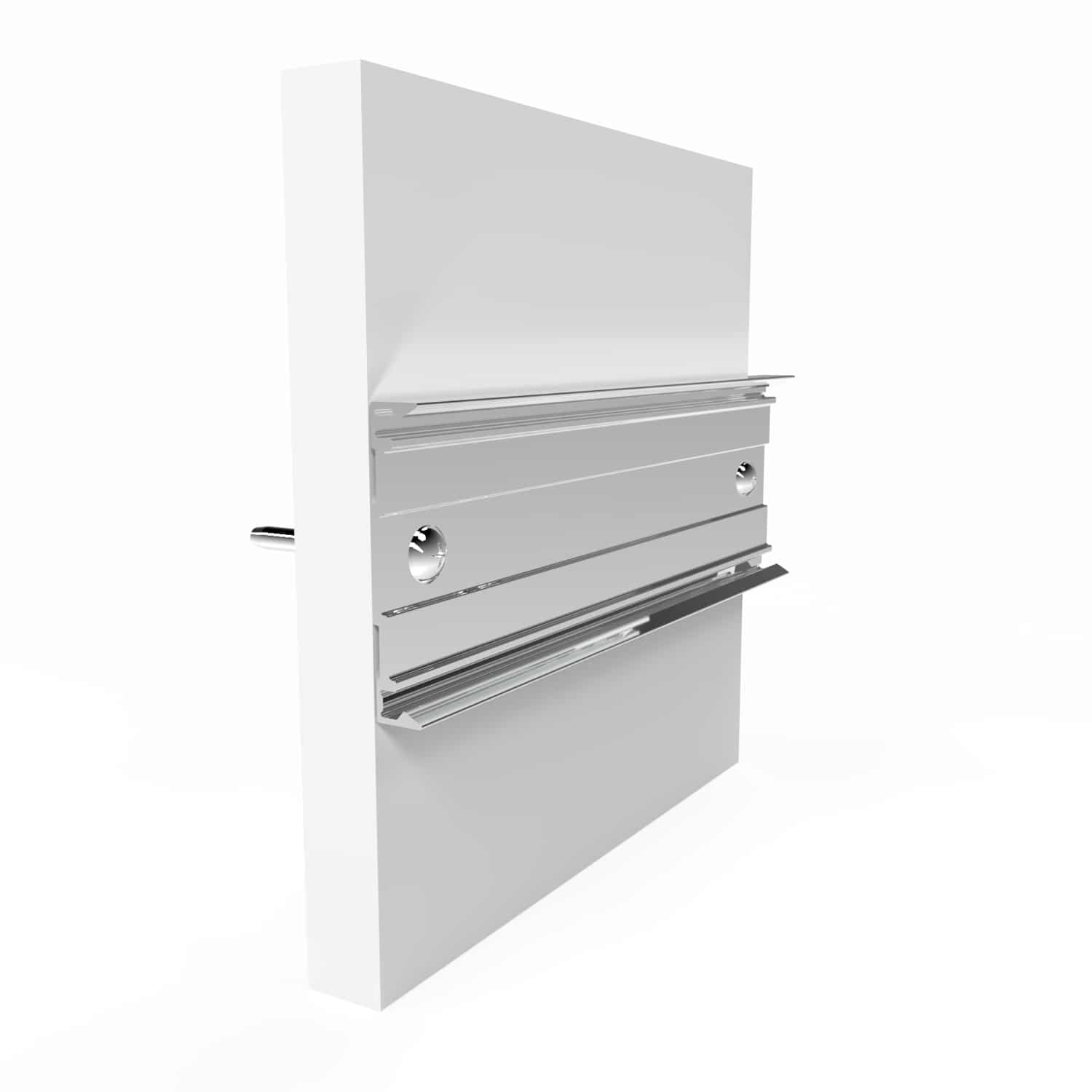

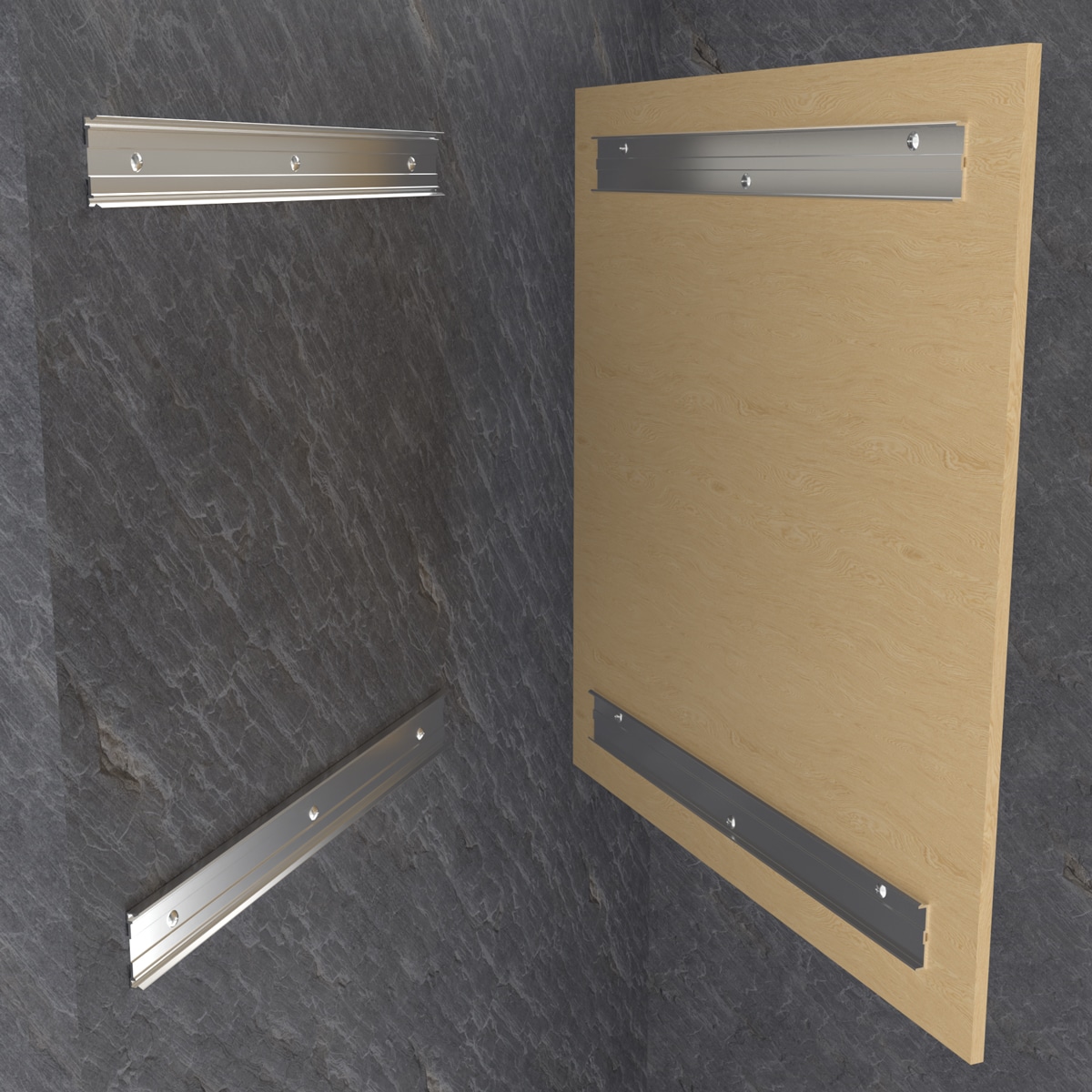

MSNAP modules are offered in a heavy-duty configuration. The system includes MSNAP-PR panel rails and MSNAP-WR wall rails in 1830 mm lengths. This continuous rail configuration provides the highest weight capacity and also aids in panel alignment.

Custom Fabricated MSNAP Components

Stock MSNAP modules ship the same or next day when ordering online or directly through customer service. If you require custom lengths or holes, simply request a quote. You can also request a sample of these profiles.

  • Weight: 50,8 mm
  • Continuous Length: 1830 mm
  • Custom Lengths Available: Any
  • Lift Off: Zero
  • Projection: 9,5 mm
  • Lift-Off: Amount needed to raise the panel over its resting height to mount the panel.
  • Projection: Distance that the panel sits out from the wall.
