MFTAPE

MFTAPE Adhesive-Backed Z Clips (Peel and Stick Application)

  • Clip height: 85.73 mm

  • Clip length: 50.8 mm

  • Lift-off: 9.53 mm

  • Projection: 7.44 mm

The MFTAPE is a Z Clip solution for installing glass, ACM, or phenolic panels where the panel does not allow for screw attachment. The MFTAPE is designed to attach to the panel and must be used in combination with the MF375 rail mounted on the wall for a complete installation. Z Clips and rails are sold separately, not in sets.

Request a Sample

Product Description

About MFTAPE Z CLip

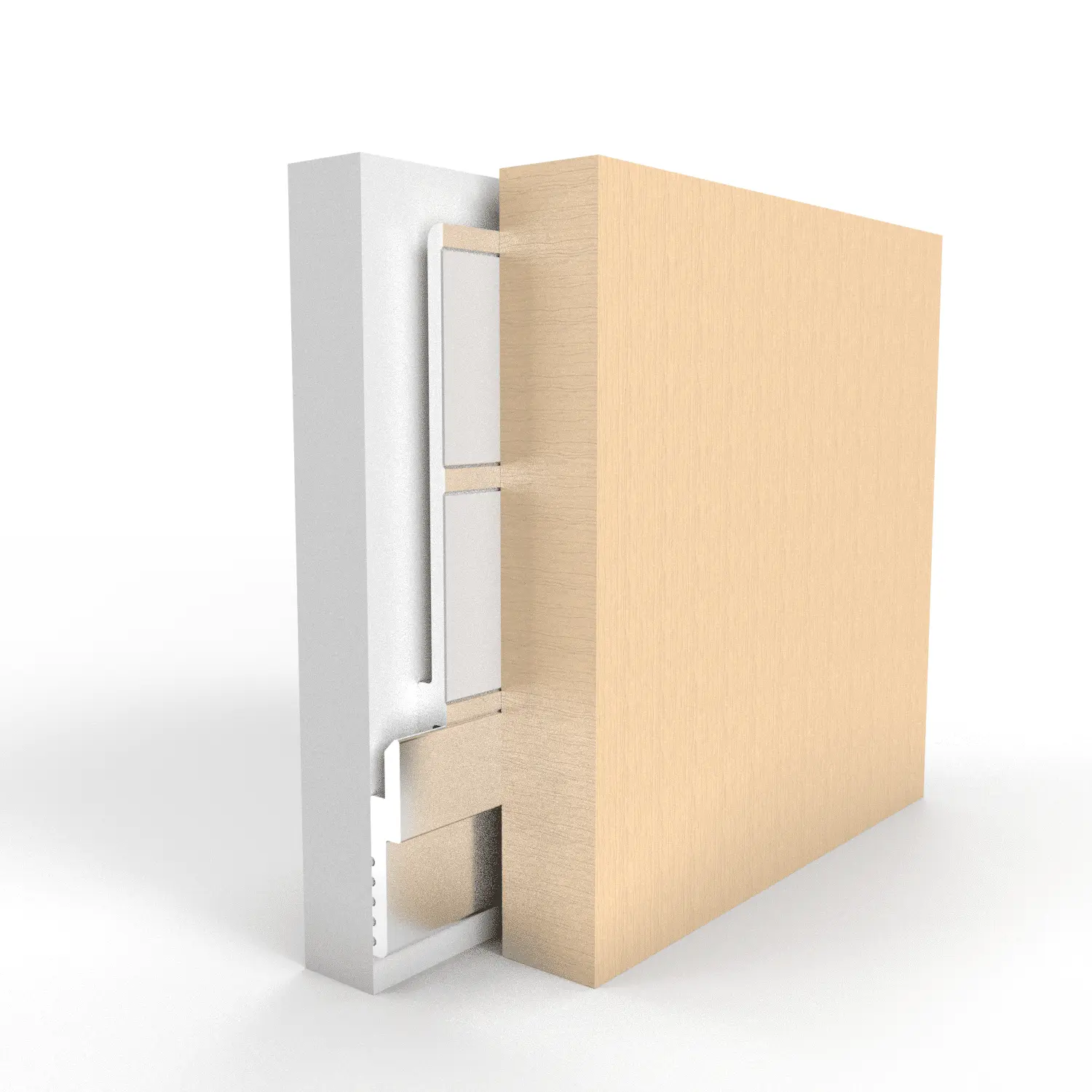

The MFTAPE is a Z Clip solution for installing glass, ACM, or phenolic panels where the panel does not allow for screw attachment. The adhesive‑backed MFTAPE is applied to the back of the panel and is designed to be used in combination with the MF375 rail mounted on the wall for a complete installation.

The MFTAPE is suitable for interior installations with only 12.7 mm clearance above the panel. It is made of aluminium and features a clip length of 50.8 mm and a clip height of 85.73 mm. The rails are available in lengths of 1500 mm or 3100 mm, with or without 3M adhesive tape. This Z Clip provides 9.525 mm lift‑off and 7.44 mm projection.

Features of MFTAPE Z CLip

  • 12,7 mm clearance is required between the top of the panel and the ceiling
  • 6063-T6 Aluminium

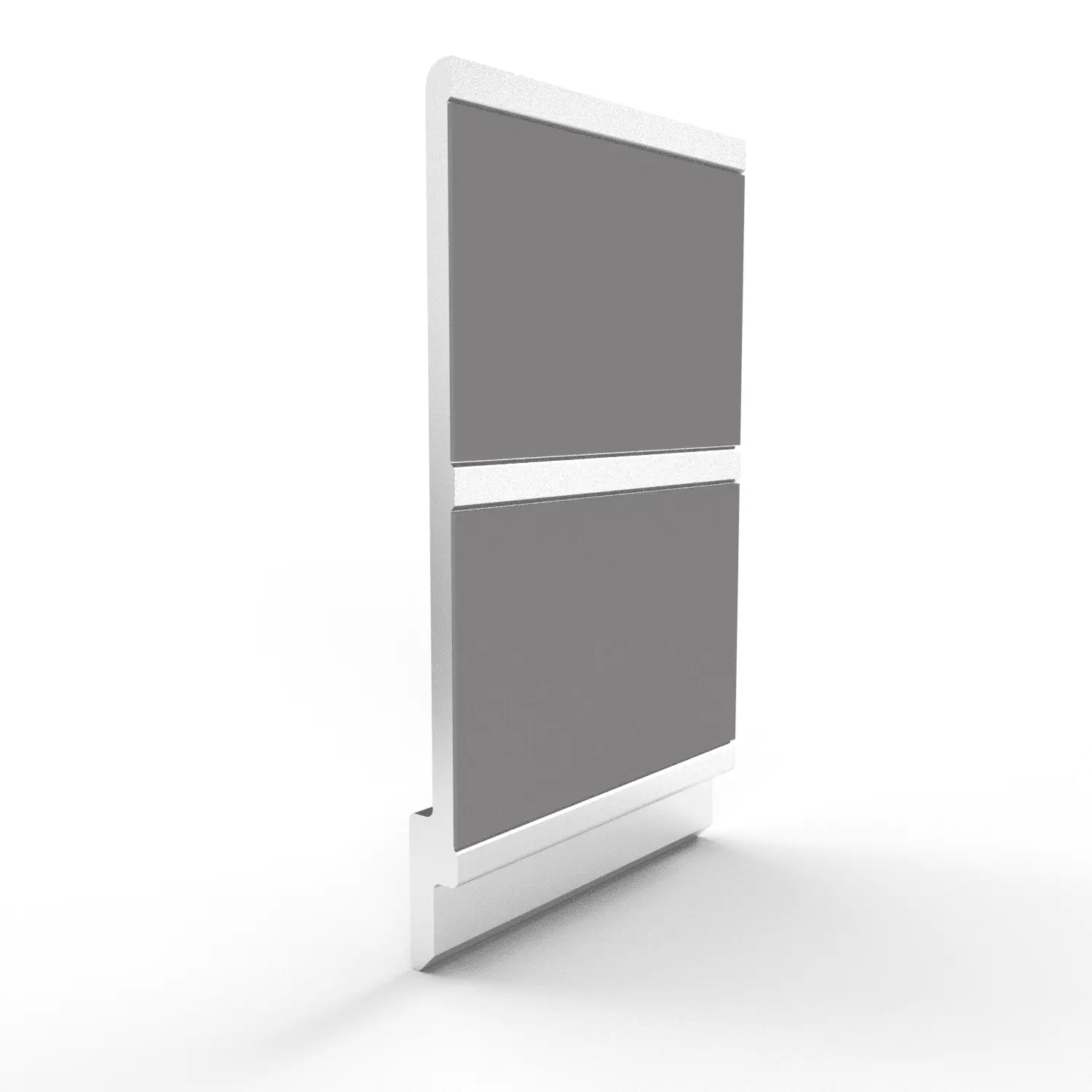

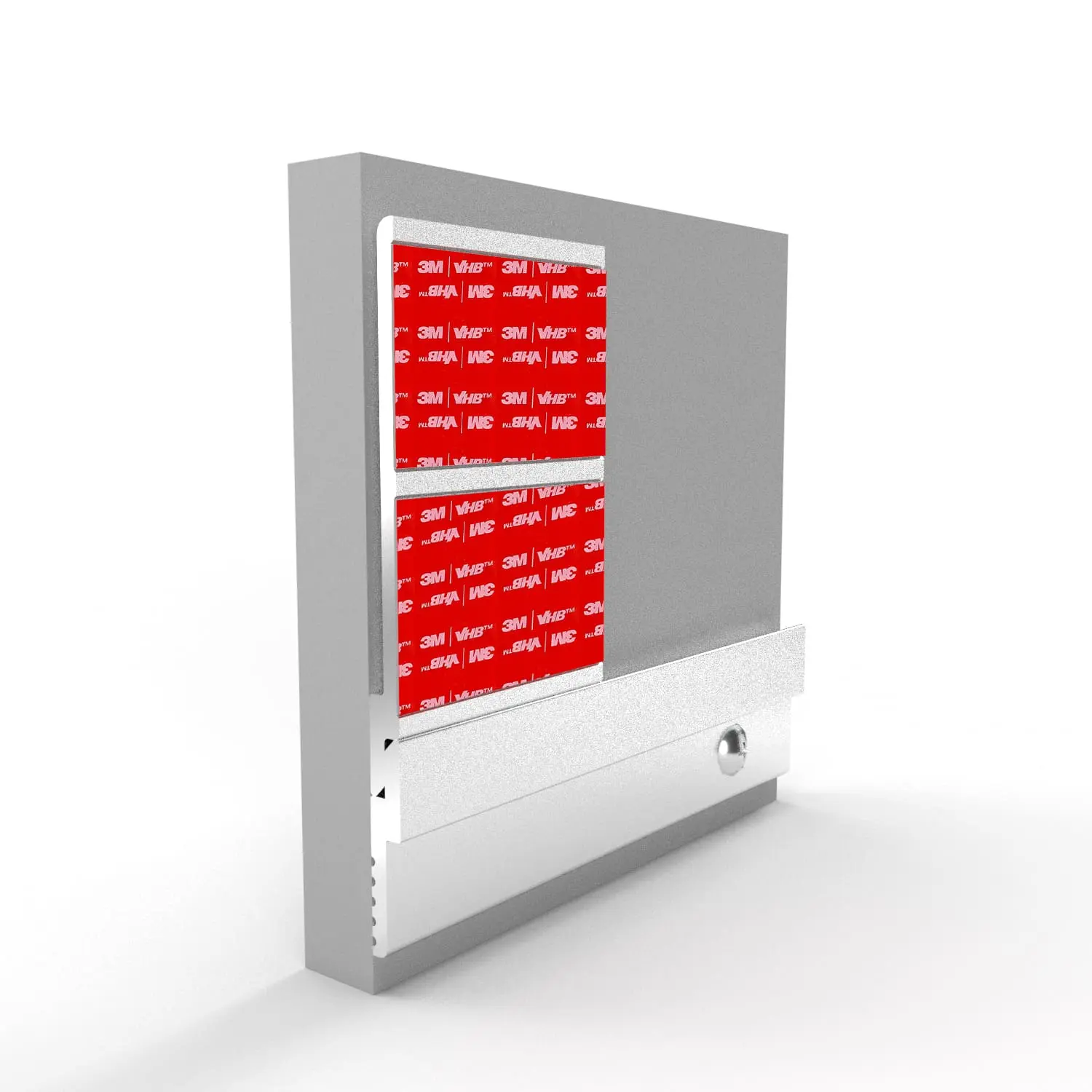

  • (2) Strips of 3M VHB Tape Pre-Applied for Peel and Stick Application
  • Easily Used for Mounting Phenolic, ACM, Aluminium, and back painted Glass Panels
  • The MFTAPE can also be used with unpainted glass panels by substituting a primer and a tape variation (please inquire for pricing)
  • Each Clip is rated for 3,4 kg of shear strength using a 5x safety factor
  • 3M has a technical article on how to prepare your panel for tape adhesion
  • Suitable for Interior Applications (Examples in 3M Design Guide)
  • Pairs with MF375 Clip & Rail
  • Rails can also be purchased without the 3M tape for use with your preferred vendor of glazing tape

Z Clip Installation Options

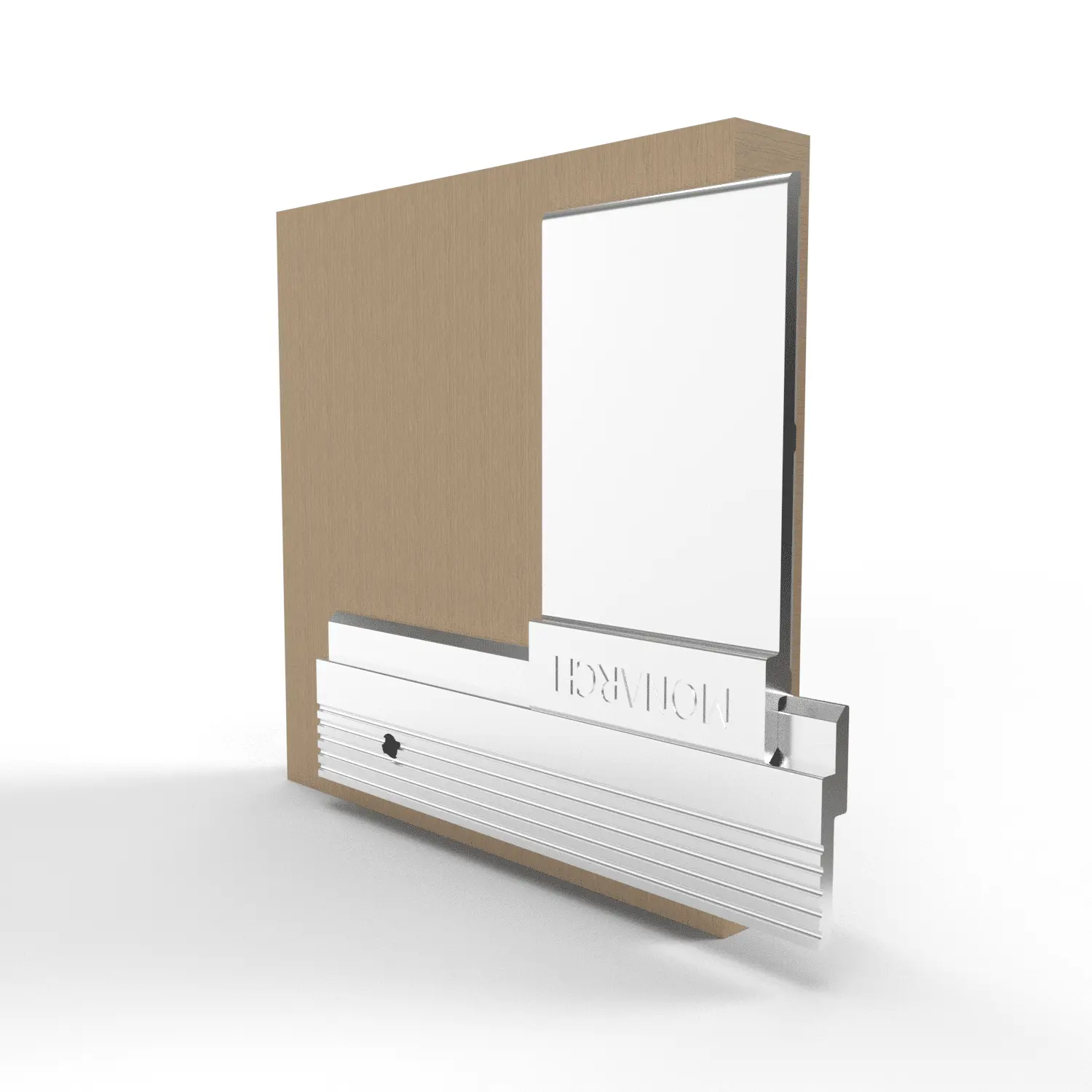

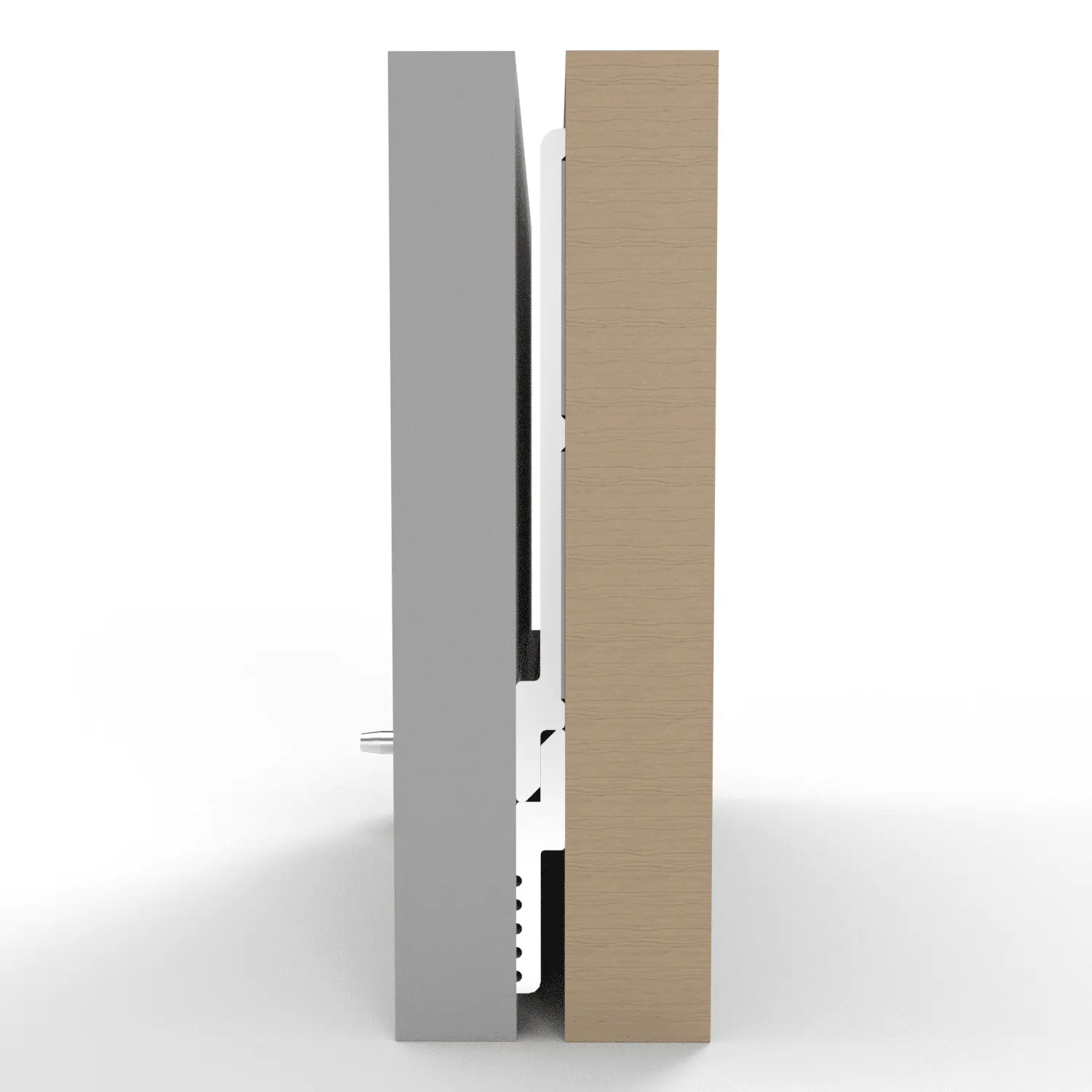

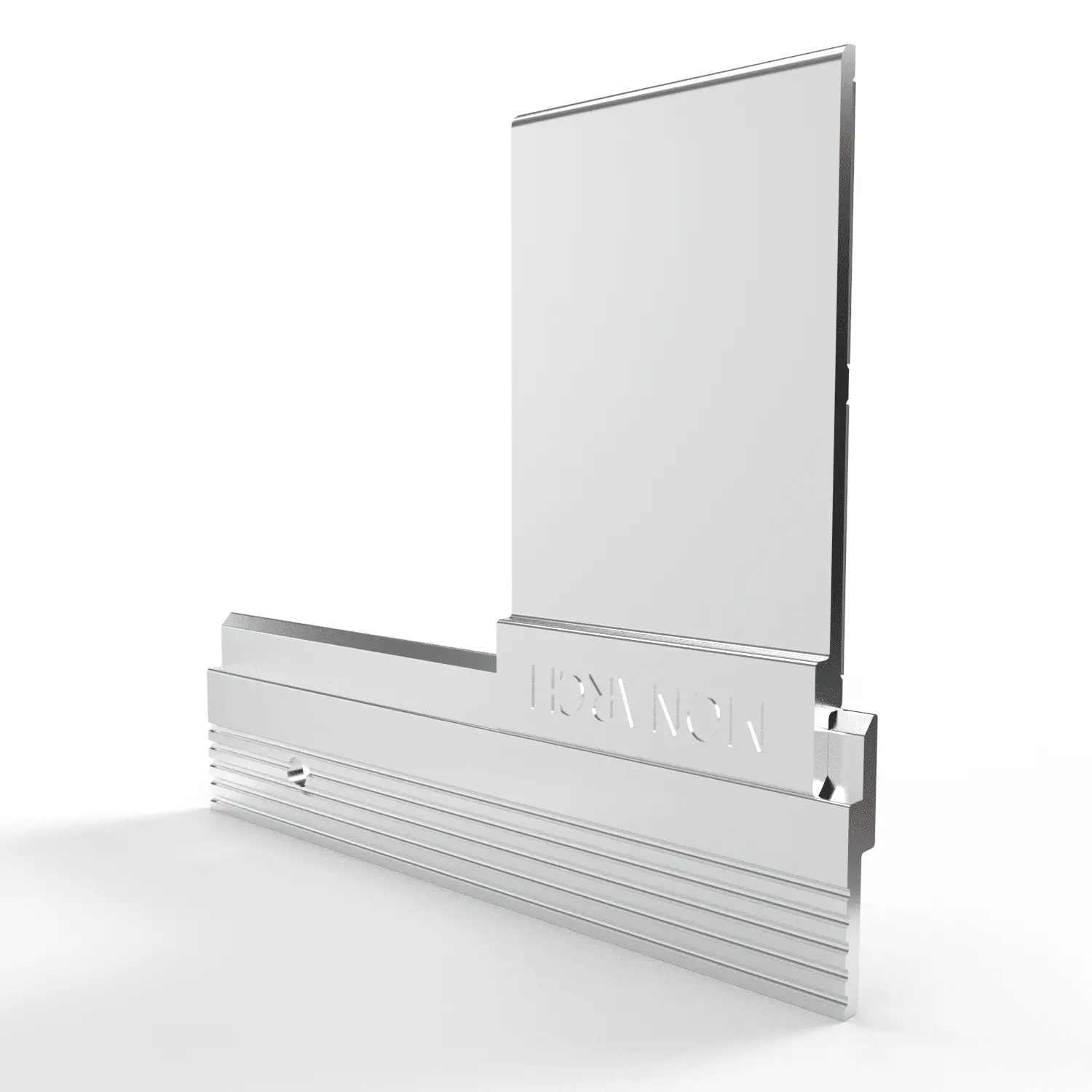

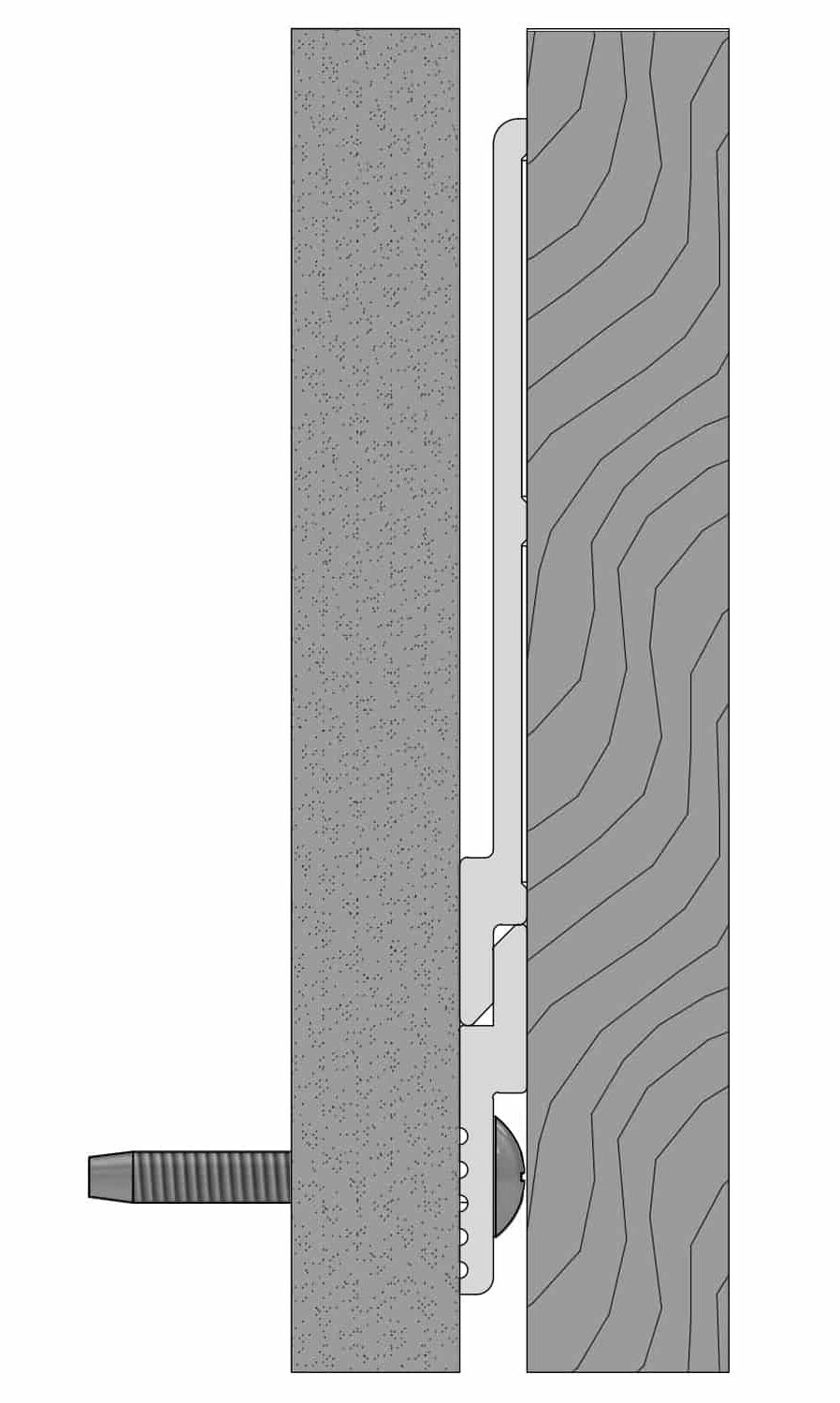

Our MFTAPE clip is designed to be used with our MF375 profile as a rail. Our standard MFTAPE clip size is 50,8 mm Wide, and that works for most applications. Applications vary in weight and materials, so we can also offer the MFTAPE clip in a variety of lengths to suit your needs. Our MFTAPE profile must be used with our MF375 rail for a complete installation solution. The MF375 is available separately in a variety of lengths. Mating options include clip-to-clip, clip-to-rail, or rail-to-rail. For this reason, Z Clips are pre-packed but rails are sold separately and individually and NOT as sets.

Custom Fabricated Z Clips

Z Clips ship the same or next day when ordering online or directly through customer service. If you require custom length Z Clips, simply request a quote. You can also request a sample of this Z Clip.

With Or Without 3M Tape

Rails can also be purchased without the 3M tape for use with your preferred vendor of glazing tape.
  • Weight: N/A
  • Dimensions: N/A
  • Material: Aluminum
  • Clip Length: 50,8 mm
  • Clip Height: 85,73 mm
  • Custom Lengths Available: Any

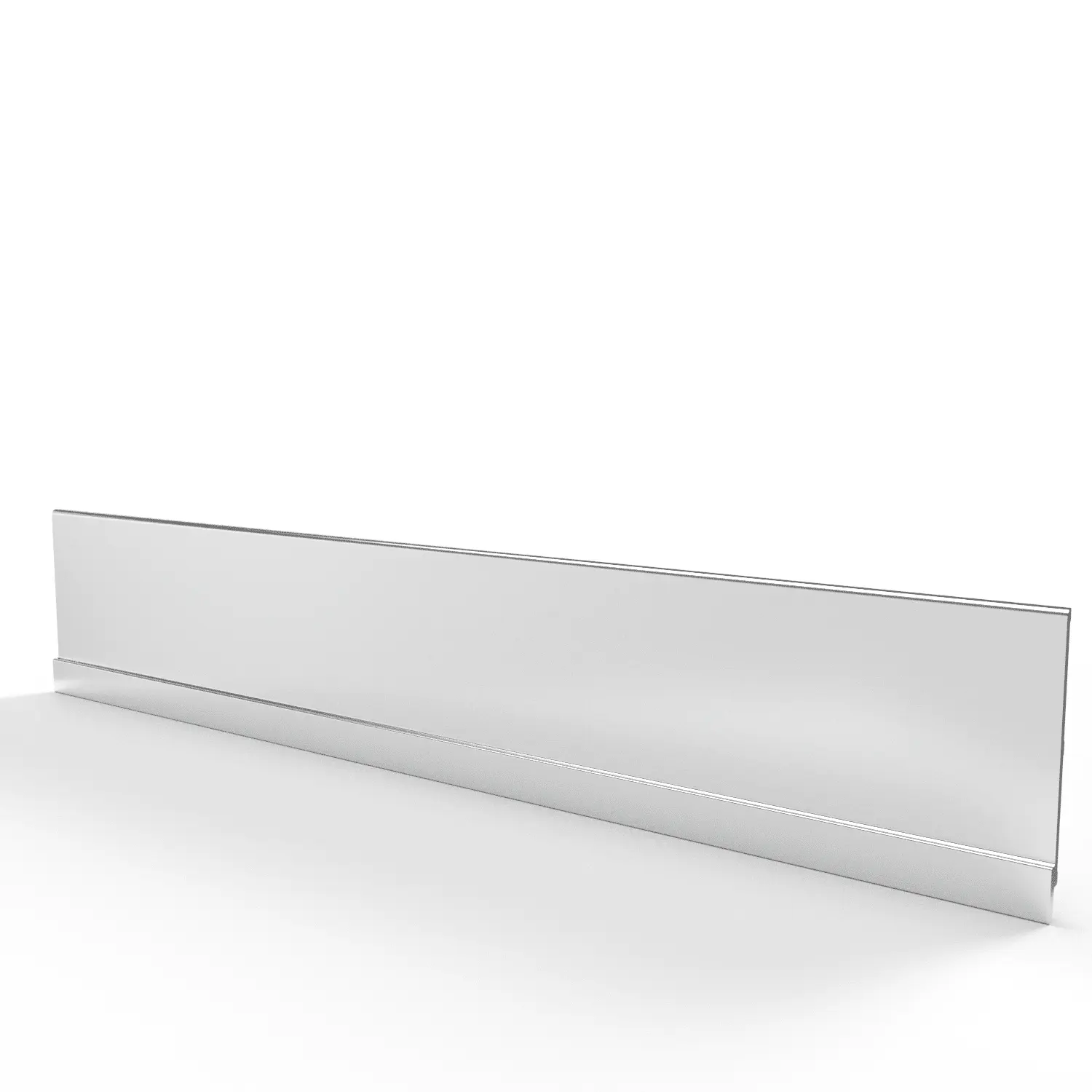

  • Rail Length: 1250 mm, 2500 mm
  • Lift Off: 9,525 mm
  • Projection: 7,44 mm
  • Availability: Upon demand
  • Lift-Off: Amount needed to raise the panel over its resting height to mount the panel.
  • Projection: Distance that the panel sits out from the wall.
