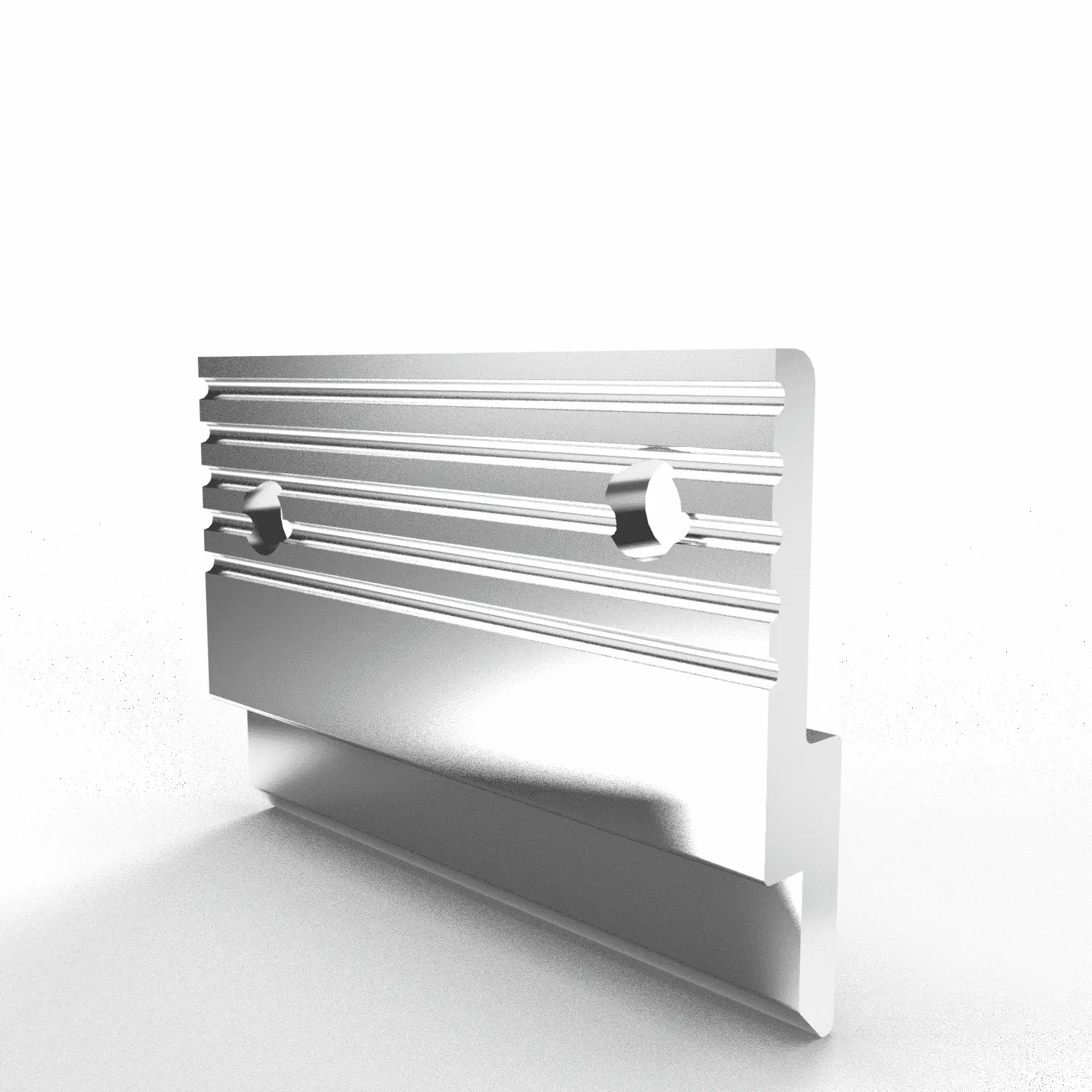

MF375 Aluminium Z Clip
Clip height: 34.9 mm
Clip length: 50.8 mm
Lift-off: 9.5 mm
Projection: 6.4 mm

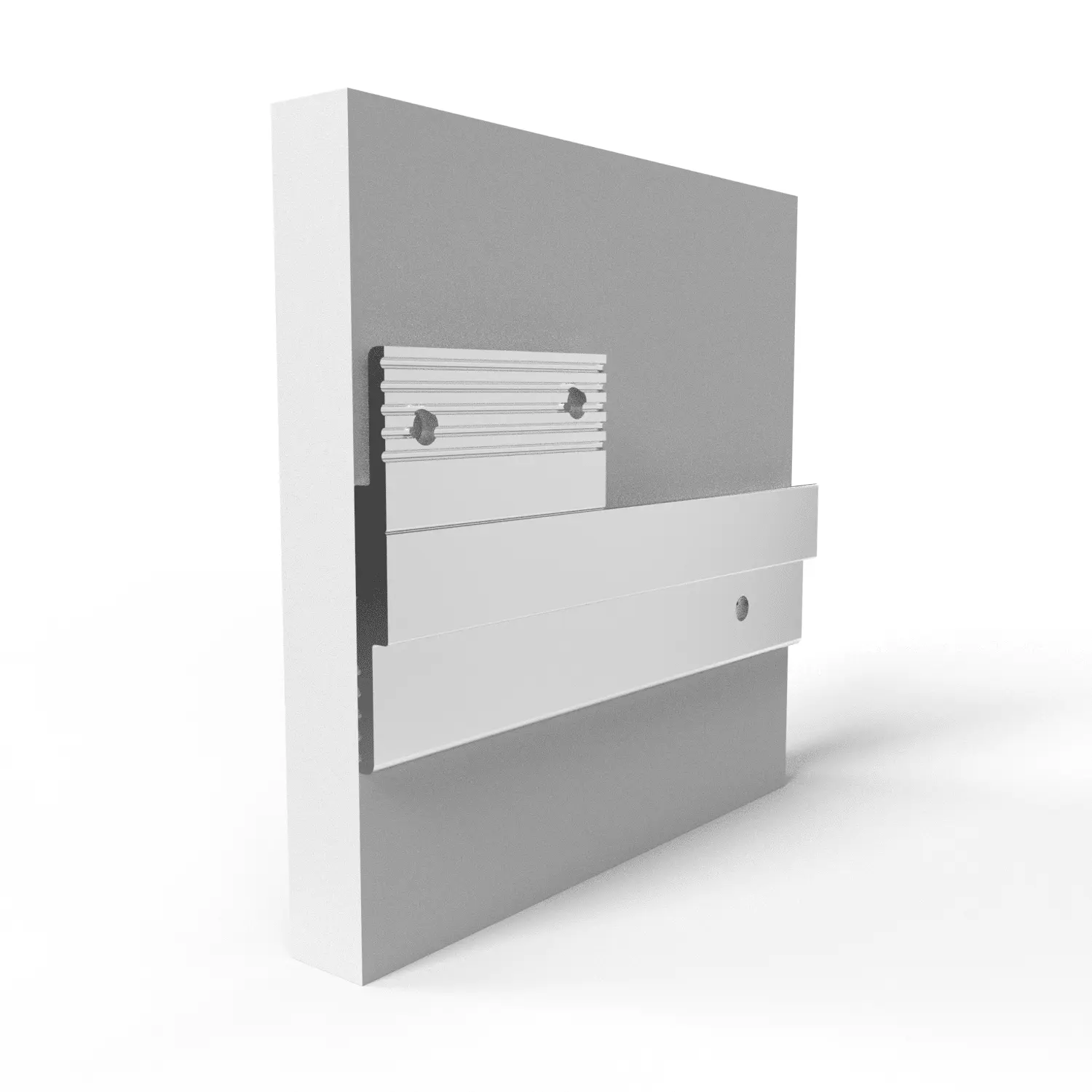

The MF375 is the perfect Z Clip solution for standard interior installations where the installer desires a 9,5 mm length of engagement. It is made of aluminium and the Z Clip features clip size length of 50,8 mm as well as continuous lengths (rails) of 1500 mm, 3100 mm. This Z Clip also provides 9,5 mm lift-off and 6,4 mm projection.

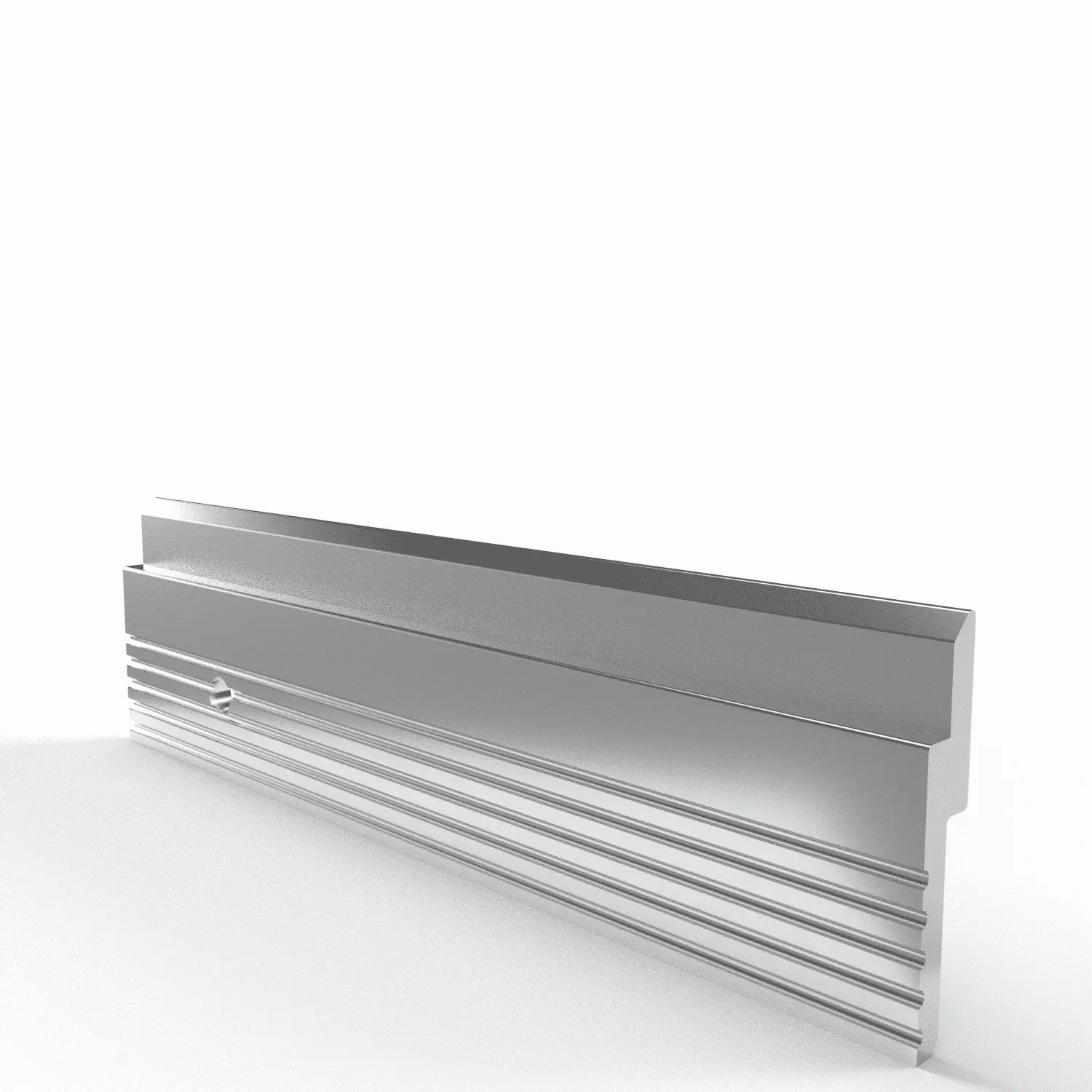

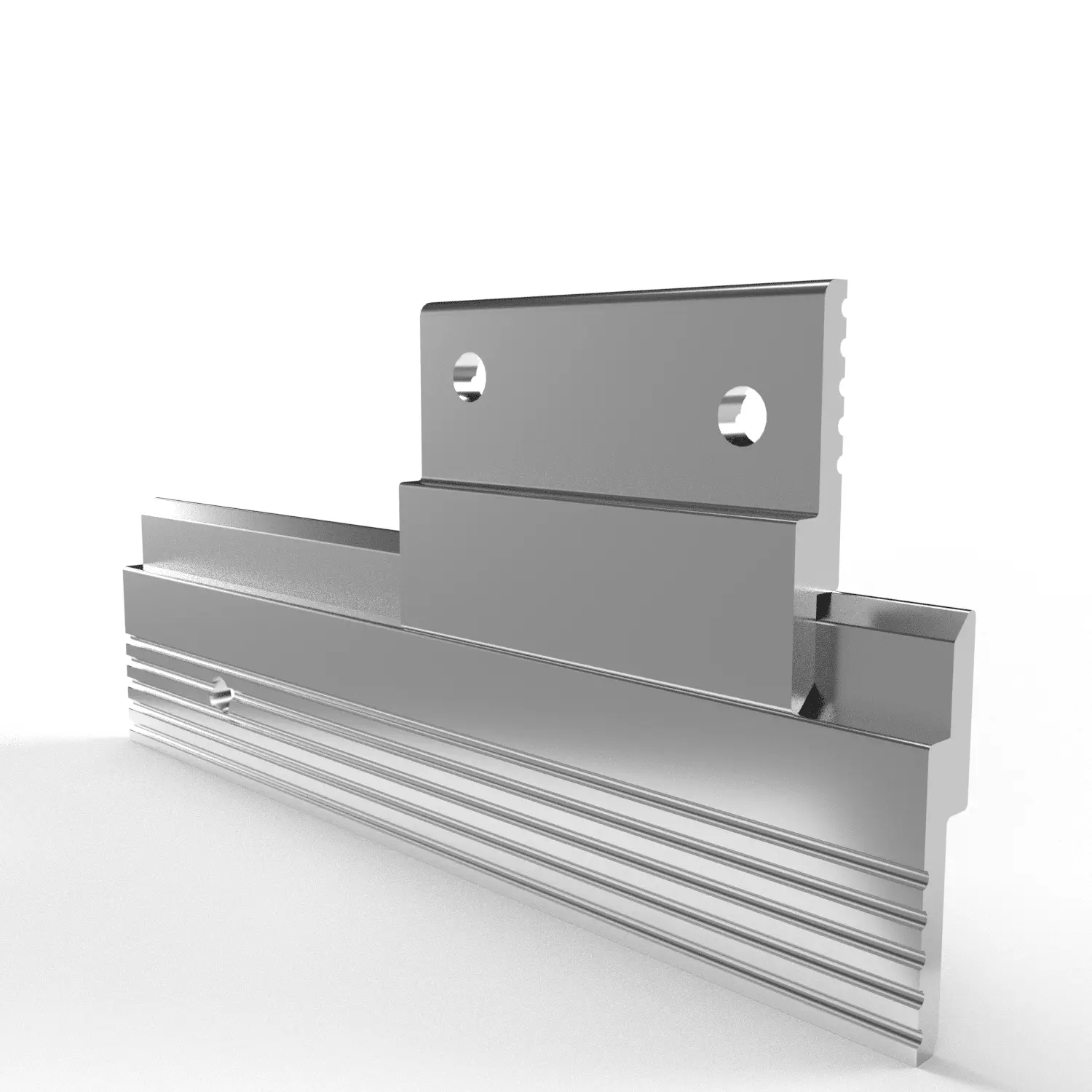

Mating options include clip-to-clip, clip-to-rail, or rail-to-rail. For this reason, Z Clips are pre-packed, but rails are sold separately and individually and NOT as sets.
Z Clips ship the same or next day when ordering online or directly through customer service. If you require custom length Z Clips, simply request a quote. You can also request a sample of this Z Clip.

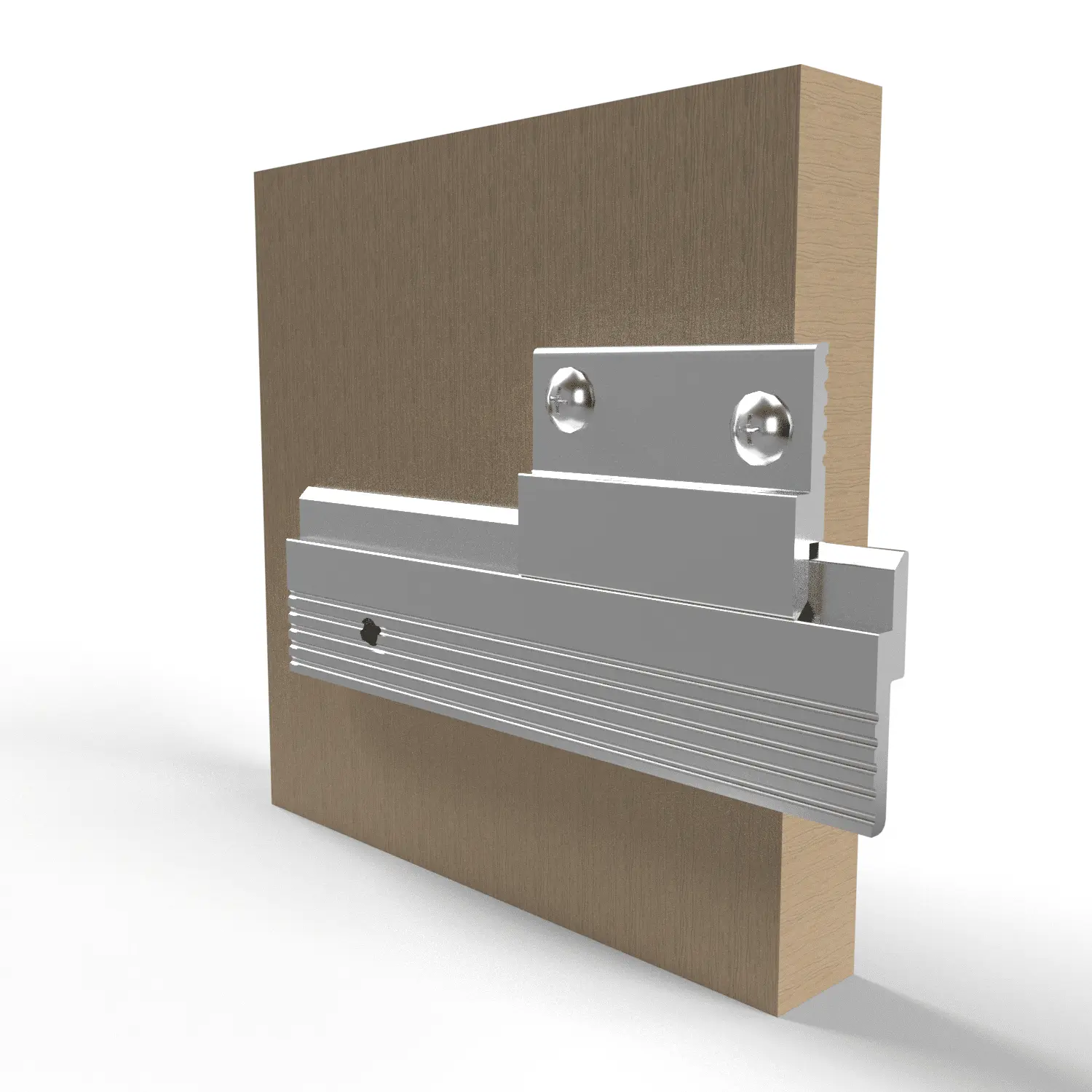

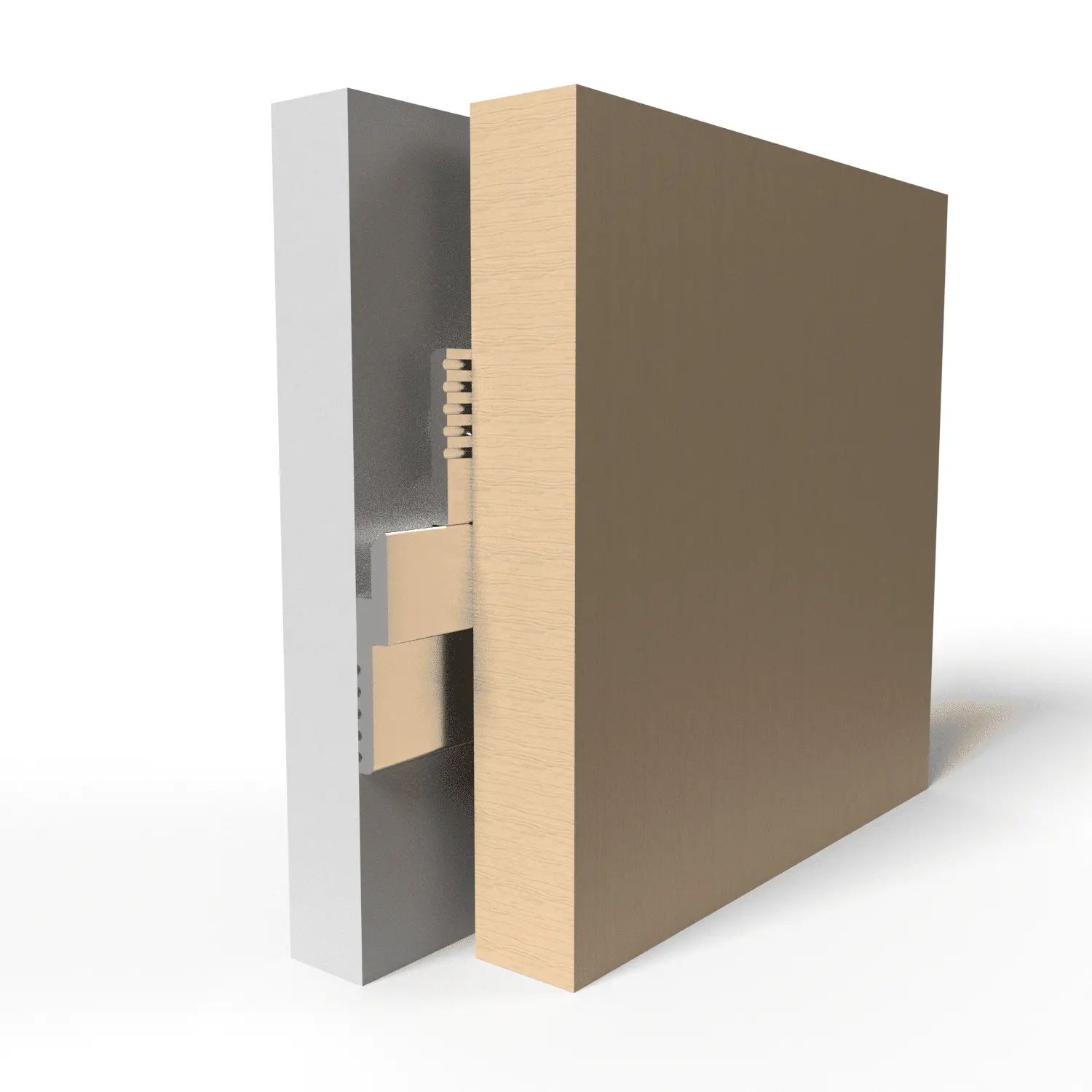

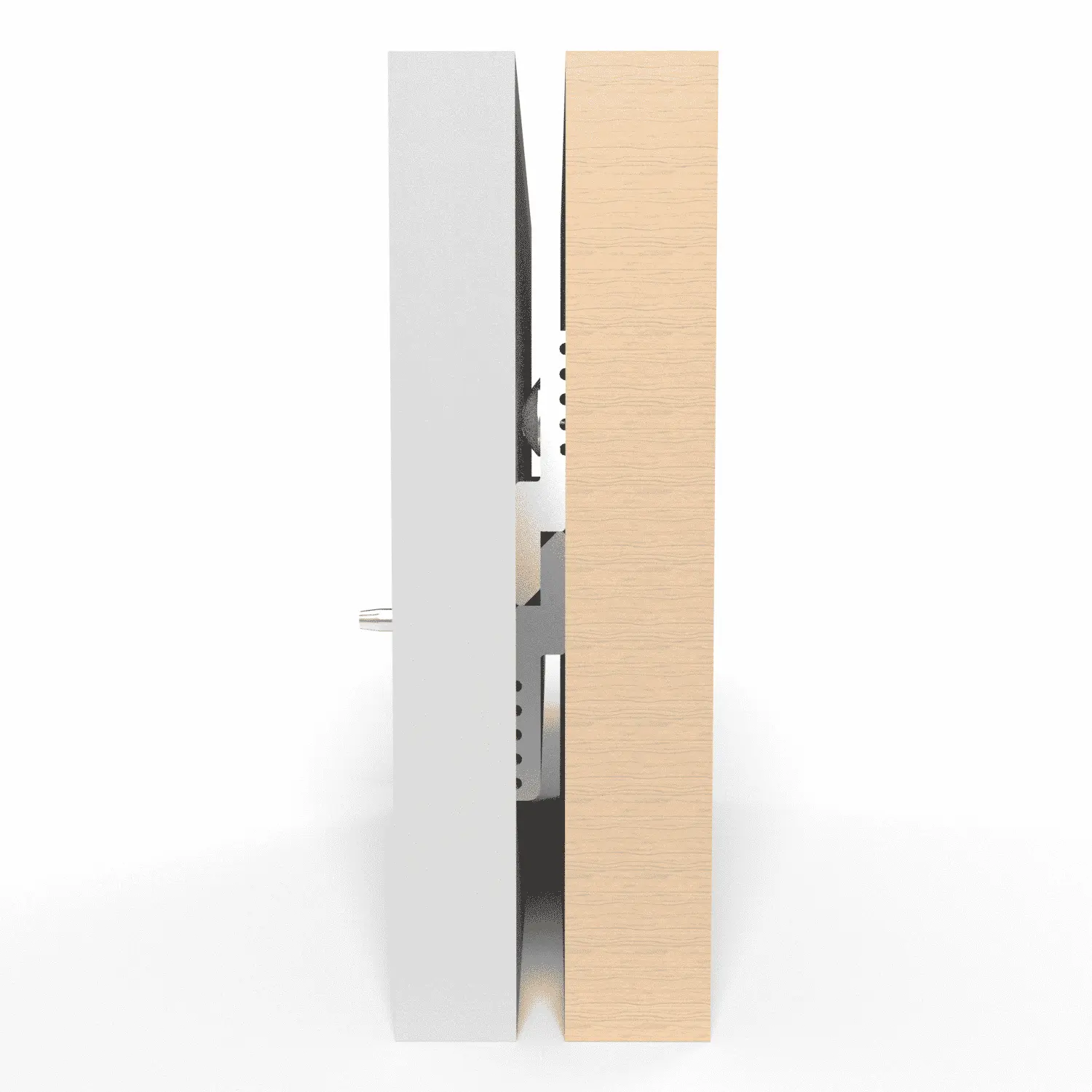

Our new heavy-duty, zero-lift snap-fit rail system is designed for the installation of a wide variety of interior panels. The system uses interlocking wall rails and panel rails that snap together to create a secure, reliable mounting solution. This design allows panels to be installed with a 9,525 mm projection from the surface or mounted tight to ceilings with no lift-off clearance required. The snap-fit configuration provides a clean, precise installation while maintaining strong support for architectural panel systems.
€30,05
